TOTALSCAN TS62 INDUSTRIAL METAL DETECTOR
*Used by water companies around the world*
Specifically designed for Water and Utility Companies

Powerful and precise, the TS62 will locate valves on water mains even when the top cover and spindle are missing. It can also locate pipes when routine tracing equipment will not work, for example, under overhead power cables or when there is a non-metallic section, such as an asbestos or plastic repair to a water main.

Saves valuable time and disruption to customers

Reduces the number of abortive holes dug and refilled.

Deep-seeking and accurate

Can locate an 100mm (4") water main at 118cm (46") and will locate valves even when the frame and cover are missing.

Stable and reliable

The Totalscan TS62 gives a steady signal which is unaffected by overhead power lines.

Lightweight and strong

Designed to be used by one person.

Versatile

The TS62 can be used for general land clearance or for checking in front of a back-hoe prior to digging. It can also be used for finding buried survey markers.

The Totalscan has saved us from service disruptions countless times by finding lost or buried apparatus. It's invaluable to us

Robert Wilson,
East of Scotland Water, UK.

The Protovale Advantage

All Protovale instruments are designed by the world's leading experts in the field of pulse induction technology. They use a unique system which is unaffected by moisture or temperature, making Protovale instruments remarkably stable in all site conditions.

Please contact us now for more information or a free demonstration

Protovale Oxford Ltd, Rectory Lane Trading Estate
Kingston Bagpuize, Abingdon OX13 5AS, England
Tel: +44 (0) 1865 821277, Fax: +44 (0) 1865 820573
email: info@protovale.co.uk

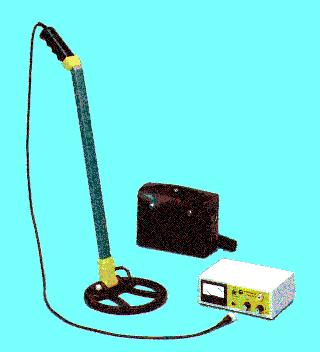

Kit includes

Control unit with built-in high quality rechargeable batteries.
Long handled search coil.
Leather carrying case for control unit.
Battery charger for 110v AC or 220-240v AC.
Instruction manual.

Approximate detection ranges

 80mm (3") cast iron main  100cm (39")
100mm (4") cast iron main  118cm (46")
100mm (4") valve only       83cm (33")
150mm (6") cast iron main  127cm (50")
Washout/Fire hydrant cover 121cm (47")
140mm (5½") diameter plate  70cm (27")

Controls

On/off and sensitivity knob.
Zero knob for optimising detection and backing off steady signals.
Loudspeaker/mute switch.

Signal indication

Easy-to-read analogue meter for signal strength (and battery state).
Loudspeaker with clear audio tone.
Socket for headphones if required.

Connectors

Front-panel UHF socket for search coil connector.
Rear-panel power jack for battery charger.
Side 3.5mm stereo jack socket for (optional) headphones.

Batteries

Built-in industrial-grade NiCad battery for a full day's usage.
Recharge overnight with charger supplied (230v AC; or 110v AC).

Dimensions

Control unit in leather case
           230 × 180 × 100 mm, 1.8kg
Search coil 220 diam × 800 mm,  850g
Charger      100 × 75 × 50 mm,  230g

Shipping details
              80 × 26 × 16 cm, 3.4kg

Full support

Protovale offers its users support by
telephone, +44 (0) 1865 82127,
fax +44 (0) 1865 820573
and email support@protovale.co.uk.

24-hour support on the web

Protovale's web site also provides updated product summaries, simple technical support and abstracts of technical papers on key issues relating to our instruments and latest news flashes.
Visit us on www.protovale.co.uk.

Full one year parts and labour warranty

Also available

Totalscan TS8 with automatic zero

New Imp Box Locator for finding stop tap and valve boxes

Pacetrace Live Cable Locator, for finding energised loaded cables
